Rfid Reader Swing Barreiras Disabled Wheelchair Single Entrance Speed Gate Turnstiles Led Red Green Arrow Light
Description
Speed Gates Turnstile RS 716-11M chassis shell is made of 2.0-3.0mm Column Swing Barriers Door RS 716-11M Also Called: Speed Lane Turnstile,Wing Turnstile,Speed Gate Turnstile,Slim Swing Turnstile and so on.Speed Lane Turnstile RS 716-11M is consist of dc motor,swing barrier,led lamp,buzzer,electric circuit,sensors,battery,mechanisim and so on.Swing Barrera RS 716-11M the swing door provides flexible passageway access control,the control width from 300-1698mm.Swing Barrieres RS 716-11M has different program from pedestrian or bicycle,work with high sensitivity sensors to ensure safety of people.Swing Doors RS 716-11M with standard fire interface,arm can drop down for evacuation even power is not cut off when fire alarm triggered.Swinggates RS 716-11M has sufficient space, which can mount with any type of external device.such as: wheel,counter,reader,card collector,push button,coin insert,QR Code/Barcoe Reader,display.Glass Turnstiles RS 716-11M has standard relay signal, which can be integrated with any kind of third-party access control system RFID,Smart Card,Fingerprint,Biometric Reader,ID Card,Face Recognition,ESD,IC Card and so on.Swing Turnstiles RS 716-11M is widely used in: Supermarket,Subway Station,Construction,Cinema,Factory,Stadiums etc.
Parameter
| Product Name | Swing Turnstile,Slim Turnstile |
| Moduel No. | RS 716-11M |
| Size | 1600*130*1000mm |
| Material | 304 stainless steel, acrylic |
| Channel width | standard 600mm (≤900 can be customized) |
| Thickness of the cabinet | 1.5mm+1.2mm |
| Drive motor | DC 24V brushless motor, low noise |
| Control panel | one for one |
| Traffic direction | one-way traffic/two-way traffic; traffic speed: 35-40 people/minute |
| Passing speed | 35~40 person/minute |
| Opening methods | ID/IC card and other readers to verify opening, infrared induction automatic opening, button opening, etc. |
| Opening signal | dry contact signal |
| Protection functions | encoder limit, electromechanical anti-collision, infrared anti-clamping, infrared alarm for illegal intrusion |
| Life | ≥9 million times |
| Infrared quantity | 6 pairs |
| Power | 30-60w |
| Applicable temperature | : -20~75ºC |
Function
- Swing Turnstile are compact and cost-effective entrance/exit security solutions.
- The body is made of brushed stainless steel which is robust, rigid, anti-rust, waterproof and durable.
- It is ideal for both indoor and outdoor settings.

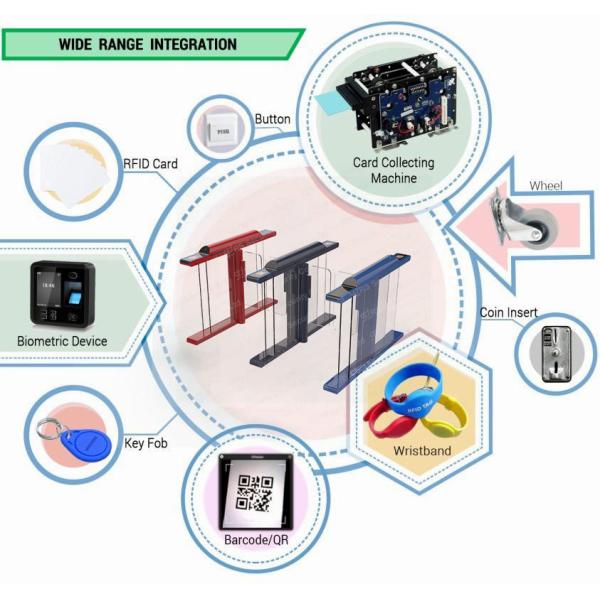

- It has standard relay signal, which can be integrated with any kind of third-party access control system (e.g.: RFID, Fingerprint and Biometric reader device).
- It has sufficient space, which can mount with any type of external device( e.g.: Display, Counter, Reader, Push button,
- Card collector, Coin insert, Barcode/QR reader, Wheel).
- In case of emergency, tripod turnstile horizontal arms will drop down automatically to allow free passage when power off.
- Anti-tailing function: only one person passes at one time.
- It is suitable for areas with general pedestrian traffic. (e.g.: Park, School, Factory, Library, Cinema, Gym).
Feature
- Intelligent linkage alarm: including alarms such as illegal break-in, reverse traffic, etc., which can be linked with other alarm monitoring equipment, and can be in the form of sound and light. If a flash alarm is required, alight-emitting alarm needs to be added to the casing.
- Anti-pinching and anti-collision function: Infrared anti-pinching: Install multiple pairs of photoelectric switches in the area near the swing arm movement (anti-pinching zone). Once a person or object is detected in the anti-pinching zone, the pendulum automatically stops moving; The swing arm continues to move.
- Anti-collision function: When the brake is locked, it can withstand the impact force in a safe range. When the brake is out of the safe range, it can be slowly pushed to protect the movement and pedestrians, and then reset automatically.
- Passing instruction function: Install an LED indicating board at a conspicuous place on the housing frame to remind pedestrians the passing state of the gate.
|
|
